TrapEase3 AutoFeed Composite Deck Screws

TrapEase3 AutoFeed Composite Deck Screws drive productivity on the jobsite while creating a great finished look in Trex Transcend®, Trex Select®, and AZEK® PVC decking.

Performance of TrapEase3 is driven by these key areas:

  1. No Stripping: The TORX® ttap® drive system offers unmatched stick-fit and wobble free installation or removal. Note: A standard TORX® T20 driver bit can be used if needed.
  2. No Rusting: Coating process ensures rust resistance that will last for the life of the project.
  3. Increased Productivity: Eliminates tool jams - no down time.
  4. Less Reloading: With 50 screws collated per strip, you can install approximately 15 sq ft of decking before reloading.
  5. Great Finished Look: TrapEase 3 provides a clean finish without predrilling in Trex Transcend, Trex Select and AZEK PVC decking.

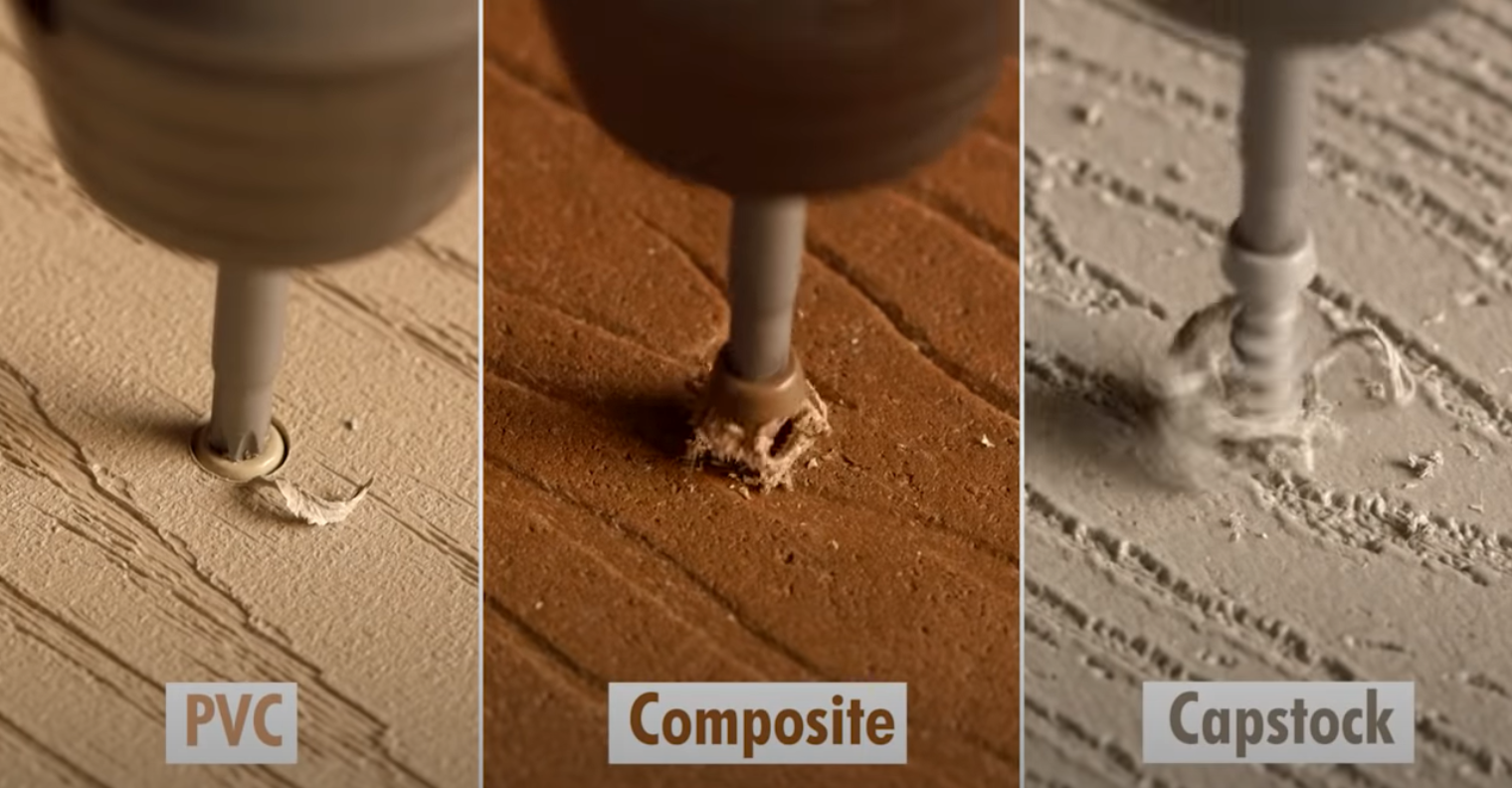

TrapEase 3 AutoFeed Composite Deck Screws can be used on other synthetic deck boards, but pre-drilling may be required in order to achieve the desired finished look. Test a piece of your deck material to ensure satisfactory appearance first.

To determine correct color, click here to view our TrapEase 3 AutoFeed selection guide

Don't see your brand? Give us a call for an up-to-date list.

Videos

TrapEase 3 AutoFeed Composite Deck Screw

TrapEase3 AutoFeed Composite Deck Screws drive productivity on the jobsite while creating a great finished look in Trex Transcend®, Trex Select®, and AZEK® PVC decking.

  • Sku Selections
  • Installation
  • Technical Docs
  • Purchase FM Products
SKU Description UPC
FMAFTR3-212-1000BR 2 1/2" Brown - Inner Box 6-08309-43021-6
FMAFTR3-212-1000BR 2 1/2" Brown - Master Carton 6-08309-43022-3
FMAFTR3-212-1000DB 2 1/2" Dark Brown - Inner Box 6-08309-43023-0
FMAFTR3-212-1000DB 2 1/2" Dark Brown - Master Carton 6-08309-43024-7
FMAFTR3-212-1000GY 2 1/2" Gray - Inner Box 6-08309-43025-4
FMAFTR3-212-1000GY 2 1/2" Gray - Master Carton 6-08309-43026-1
FMAFTR3-212-1000RD 2 1/2" Red - Inner Box 6-08309-43027-8
FMAFTR3-212-1000RD 2 1/2" Red - Master Carton 6-08309-43028-5
SD-26-BITT2143 143 mm Torx ttap bit 8-38011-00735-6



Description Dimension Weight
Inner Box 22.5" long x 5" wide x 3" tall 11.45lbs.
Master Carton 22.5" long x 10.75" wide x 11" tall 68.70lbs



TrapEase 3 AutoFeed Composite Deck Screws are designed for Trex Transcend, Trex Select and AZEK solid PVC decking without predrilling. It is important to note that extreme air temperature during installation can affect finished look and may require predrilling.

Note: We suggest that you always test TrapEase 3 AutoFeed Screws in a piece of your decking material at ambient temperature to ensure satisfactory appearance.

PREDRILLING IS REQUIRED WHEN: *

  • Installation within 1" of an edge or end of board
  • Installation at butt seams. Common practice dictates that an additional joist is sistered at each butt seam connection.

* In these cases, use a 3/16" drill bit to pilot a hole through the deck board (not the framing). Install a few TrapEase 3 screws to check for appearance before continuing. If you experience any issues, stop installation and call FastenMaster technical support.

Lifetime Warranty

TrapEase 3 AutoFeed Composite Deck Screws are guaranteed for the life of the project. If you are ever dissatisfied with fastener performance, please contact FastenMaster for a full reimbursement.

Note: The color is designed to be an acceptable match to deck boards offered by leading board manufacturers. It is recommended to try a fastener on a loose board to check color match before applying to final product.



Technical Bulletins

FastenMaster technical bulletins are abridged versions of our TERs that demonstrate general guidelines and fastening patterns.
