Structural Screws for Ledger Board 101

When attach­ing a ledger board to a house, select­ing the right fas­ten­ers is crit­i­cal for both the struc­tur­al integri­ty and long-term sta­bil­i­ty of the deck or over­hang it sup­ports. Struc­tur­al screws, designed specif­i­cal­ly for hold­ing pow­er and resis­tance to envi­ron­men­tal fac­tors, have become a choice solu­tion for pro­fes­sion­als and DIY enthu­si­asts alike.

This guide will walk you through the basics of choos­ing and using struc­tur­al screws for ledger boards, ensur­ing your con­struc­tion is secure, com­pli­ant with build­ing codes, and durable against the tests of time and weather.

Role of Ledger Boards in Deck Construction

A ledger board is a hor­i­zon­tal struc­tur­al ele­ment that is anchored to the main struc­ture of a build­ing, typ­i­cal­ly a house, to sup­port one side of a deck.

• It serves as the cru­cial link trans­fer­ring the load from the deck into the build­ing’s frame.
• Prop­er instal­la­tion of the ledger board is fun­da­men­tal for ensur­ing the deck­’s sta­bil­i­ty and safe­ty, as it not only sup­ports sig­nif­i­cant weight but also with­stands envi­ron­men­tal stress­es such as wind and the weight of occupants.

The integri­ty of a deck con­struc­tion relies heav­i­ly on how well the ledger board is fas­tened to the house, which is why choos­ing the right fas­ten­ers, such as Fas­ten­Mas­ter’s Ledger­LOK screws, is essential.

Understanding Structural Screws

Struc­tur­al screws are specif­i­cal­ly engi­neered to offer greater strength and reli­a­bil­i­ty than tra­di­tion­al fas­ten­ing solu­tions. These screws are designed to secure crit­i­cal con­nec­tions, includ­ing those involv­ing ledger boards:

• Effi­cient Instal­la­tion: Ledger­LOK screws are unique­ly designed for direct dri­ving into wood, bypass­ing the usu­al pre-drilling step. This sig­nif­i­cant reduc­tion in instal­la­tion time not only sim­pli­fies the con­struc­tion process but also enhances over­all pro­duc­tiv­i­ty on projects.
• Built-in Wash­er Heads: These screws come with inte­grat­ed wash­ers that ensure a larg­er bear­ing sur­face and pre­vent the head from sink­ing into the wood.

Choos­ing the right struc­tur­al screws for your ledger board is piv­otal in build­ing a deck that is both safe and endur­ing, empha­siz­ing the impor­tance of qual­i­ty and pre­ci­sion in every aspect of deck construction.

Features of FastenMaster’s LedgerLOK

Fas­ten­Mas­ter’s Ledger­LOK screws bring inno­v­a­tive fea­tures to the fore­front of ledger board instal­la­tion, offer­ing unmatched effi­cien­cy and security.

Advanced Cor­ro­sion Resistance:

• Ledger­LOK screws are treat­ed with a pro­pri­etary gal­va­nized and poly­mer coat­ing that sur­pass­es tra­di­tion­al hot-dipped gal­va­nized coat­ings. This sophis­ti­cat­ed treat­ment ensures supe­ri­or cor­ro­sion resis­tance, mak­ing Ledger­LOK an opti­mal choice for projects exposed to wet-use con­di­tions or in prox­im­i­ty to salt­wa­ter environments.

Com­pre­hen­sive Tech­ni­cal Specifications:

• Avail­able in lengths of 3−5÷8″ or 5″, Ledger­LOK screws are metic­u­lous­ly designed to achieve full thread engage­ment with the rim mate­r­i­al and extend beyond the inside face of the rim joist. This fea­ture is crit­i­cal for forg­ing the strongest pos­si­ble con­nec­tion across var­i­ous lum­ber types and thicknesses.
• The screws are equipped with a heavy-duty coat­ing to fur­ther resist cor­ro­sion, there­by enhanc­ing their dura­bil­i­ty and lifes­pan under diverse envi­ron­men­tal conditions.

Inno­v­a­tive Design Elements:

• Fea­tures such as the TORX ttap dri­ve sys­tem sig­nif­i­cant­ly enhance the inter­ac­tion between the screw and the dri­ver. This design offers more con­tact points, which not only reduces wear and tear but also cru­cial­ly pre­vents cam-out. This aspect is par­tic­u­lar­ly ben­e­fi­cial in main­tain­ing the integri­ty of the screw head and the dri­ver, ensur­ing a smoother instal­la­tion process.

Installing LedgerLOK Screws

Installing Ledger­LOK screws is a straight­for­ward process that max­i­mizes ledger board secu­ri­ty and com­pli­ance with build­ing standards.

Preparation and Positioning

Begin with accu­rate place­ment by mark­ing the spots on your ledger board where the screws will be installed. This ensures that each Ledger­LOK screw is posi­tioned cor­rect­ly to main­tain the struc­tur­al integri­ty of the entire system.

Applying the ​‘V’ Staggering Pattern

• Adopt a ​‘V’ pat­tern for screw place­ment to opti­mize the load dis­tri­b­u­tion across the ledger board. This pat­tern involves stag­ger­ing the screws in a way that enhances the over­all strength and sta­bil­i­ty of the connection.
• Key spac­ing mea­sure­ments to fol­low include:
  • Min­i­mum end dis­tance: Ensure there is at least 3−3÷4 inch­es from the end of the ledger board to the first screw.
  • On-cen­ter spac­ing: This should be tai­lored accord­ing to spe­cif­ic project require­ments as detailed in the Fas­ten­Mas­ter tech­ni­cal doc­u­men­ta­tion, which pro­vides guid­ance based on var­i­ous load and envi­ron­men­tal factors.

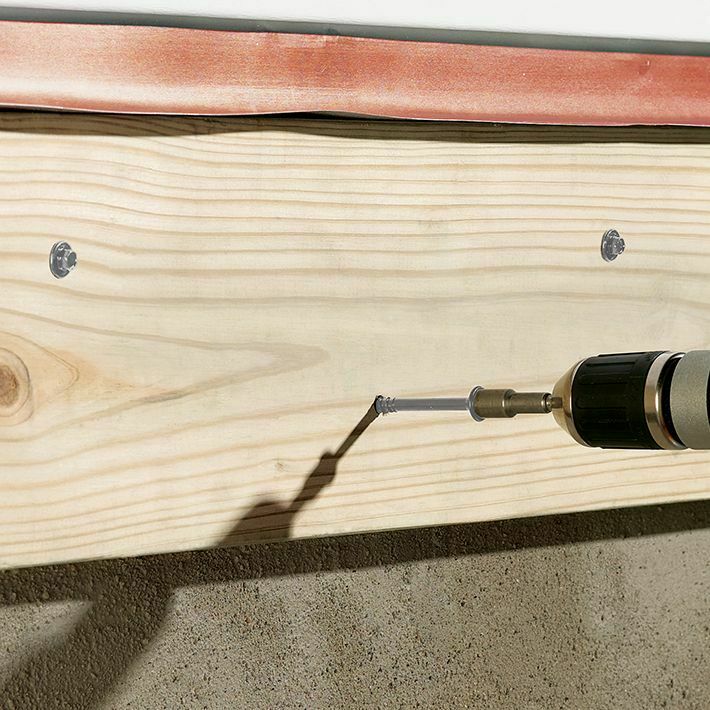

Driving the Screw

• Use a stan­dard drill to insert the Ledger­LOK screw into the pre-marked and appro­pri­ate­ly spaced posi­tions on the ledger board.
• Dri­ve each screw until the built-in wash­er head sits flush against the ledger board, secur­ing it tight­ly. This step is cru­cial as it ensures that the screws are not only insert­ed cor­rect­ly but also pro­vide a firm, secure hold that is essen­tial for safe­ty and performance.

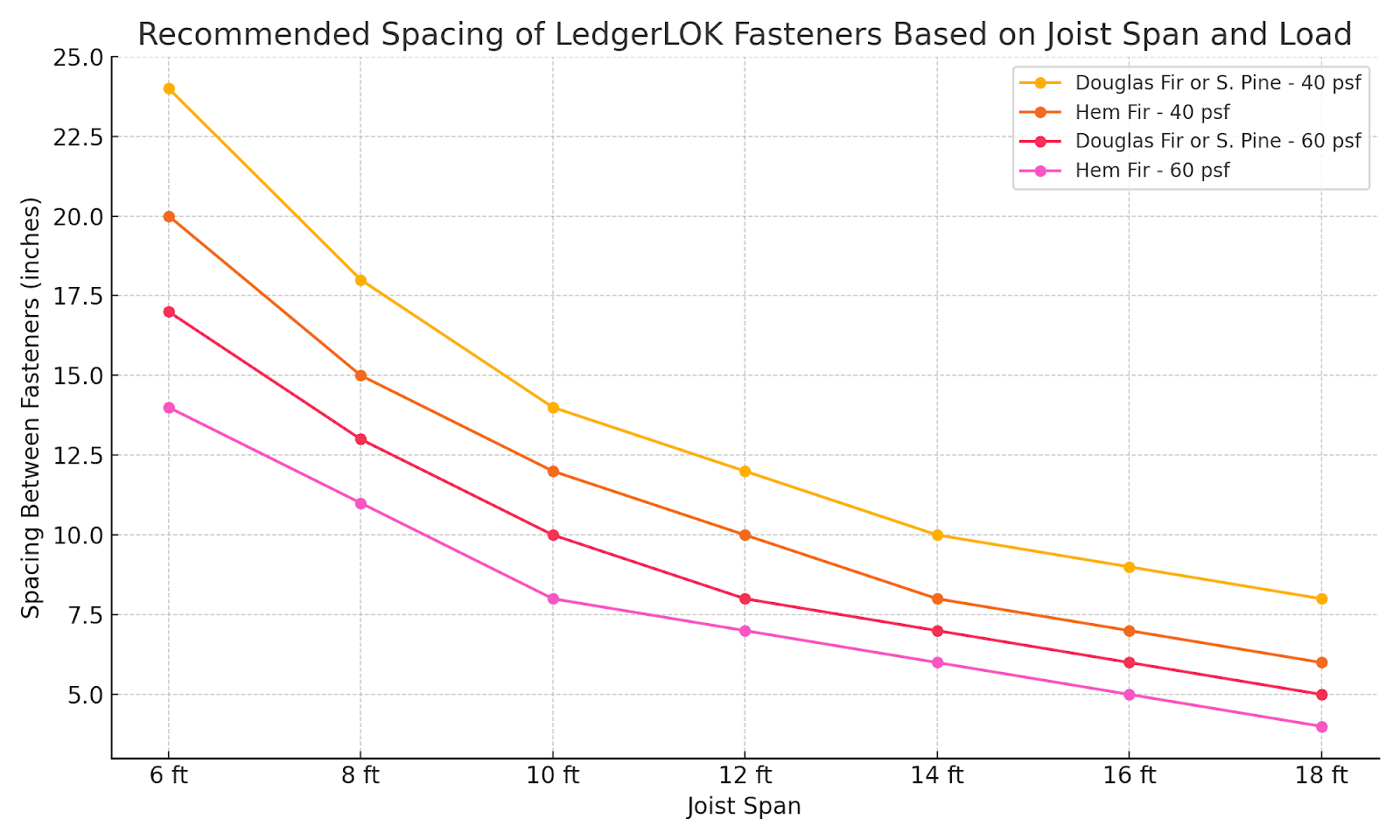

The fol­low­ing chart demon­strates the best spac­ing for a giv­en joist span.

Comparative Analysis: LedgerLOK vs. Lag Screws

Lag screws, once the stan­dard for such appli­ca­tions, require pre-drilling and often fall short in pro­vid­ing the same lev­el of strength and ease of instal­la­tion as Ledger­LOK screws.

Traditional Use of Lag Screws

Tra­di­tion­al­ly, ¹⁄₂″ lag screws have been the stan­dard for ledger board instal­la­tions. These screws require pre-drilling and often neces­si­tate a wash­er to pre­vent the wood from split­ting, which adds extra steps and time to the instal­la­tion process.

Advantages of Using LedgerLOK

• Enhanced Effi­cien­cy: Ledger­LOK screws sim­pli­fy the instal­la­tion process sig­nif­i­cant­ly. By elim­i­nat­ing the need for pre-drilling, Ledger­LOK screws reduce the time and labor involved in secur­ing ledger boards. This stream­lined process not only speeds up projects but also reduces poten­tial errors asso­ci­at­ed with addi­tion­al instal­la­tion steps.
• Increased Safe­ty and Load Capac­i­ty: Designed to han­dle high­er loads, Ledger­LOK screws pro­vide a stronger, more secure con­nec­tion between the ledger board and the struc­ture. This enhanced load capac­i­ty ensures greater safe­ty and sta­bil­i­ty, cru­cial for struc­tur­al integrity.
• Code Com­pli­ance: Ledger­LOK’s design and per­for­mance are backed by Fas­ten­Mas­ter’s ICC Eval­u­a­tion Report, which affirms their com­pli­ance with build­ing codes. This code-com­pli­ant con­nec­tion guar­an­tees that Ledger­LOK instal­la­tions meet rig­or­ous safe­ty stan­dards, offer­ing peace of mind and reliability.

For con­trac­tors and DIY enthu­si­asts alike, the choice of using Ledger­LOK screws rep­re­sents a shift towards more effi­cient, reli­able, and code-com­pli­ant con­struc­tion practices.

FastenMaster’s LedgerLOK: The Ultimate Solution for Your Ledger Board Needs

Dis­cov­er the struc­tur­al integri­ty and ease of instal­la­tion that FastenMaster’s Ledger­LOK screws can bring to your ledger board projects. By choos­ing Ledger­LOK, you’re not just build­ing; you’re ensur­ing last­ing strength and safe­ty for your decks.

Explore the full range of LOK prod­ucts on our web­site or con­tact us today for more information.
