Cortex Fascia Hidden Fastening System

The Cortex Fascia Hidden Fastening System is the strongest, easiest way to hide fasteners in Trex Fascia Boards.

Cortex for Fascia is engineered for fascia expansion/contraction and plugs are made from Trex fascia board making for a perfect color match.

Cortex also features the TORX ttap® Drive System: This system is almost impossible to strip-out. In addition, the stability button keeps the fastener straight through installation.

Cortex for Fascia is available in a 50 lineal foot kit complete with 100 1 ¾” screws, 105 plugs, 1 counterbore tool and 1 setting tool.

Videos

Cortex Hidden Fastener for Trex Fascia

FastenMaster has developed a Cortex system that is specifically designed to allow for fascia board movement. The finished look is virtually invisible.

  • Sku Selections
  • Installation
  • Technical Docs
  • Purchase FM Products

Cortex Fascia Hidden Fastening System

Board SKU
Fire Pit FMCTXF-TX50TSFP
Gravel Path FMCTXF-TX50TSGP
Havana Gold FMCTXF-TX50TSHG
Island Mist FMCTXF-TX50TSLM
Lava Rock FMCTXF-TX50TSLR
Rope Swing FMCTXF-TX50TSRS
Spiced Rum FMCTXF-TX50TSSR
Tiki Torch FMCTXF-TX50TSTT
Tree House FMCTXF-TX50TSTH
Universal White FMCTXF-TX50TSUW
Vintage Lantern FMCTXF-TX50TSVL



Cortex for Fascia can be installed using a 18V or greater cordless drill for all parts of this installation. An impact driver is not recommended.

For 1x8 fascia, install a vertical row of 2 fasteners every 18". Use 3 fasteners for 1x12 fascia. Install the first and last row 1" from board ends, tack the fascia board into place using a few Cortex Fascia screws and leave the heads slightly raised.

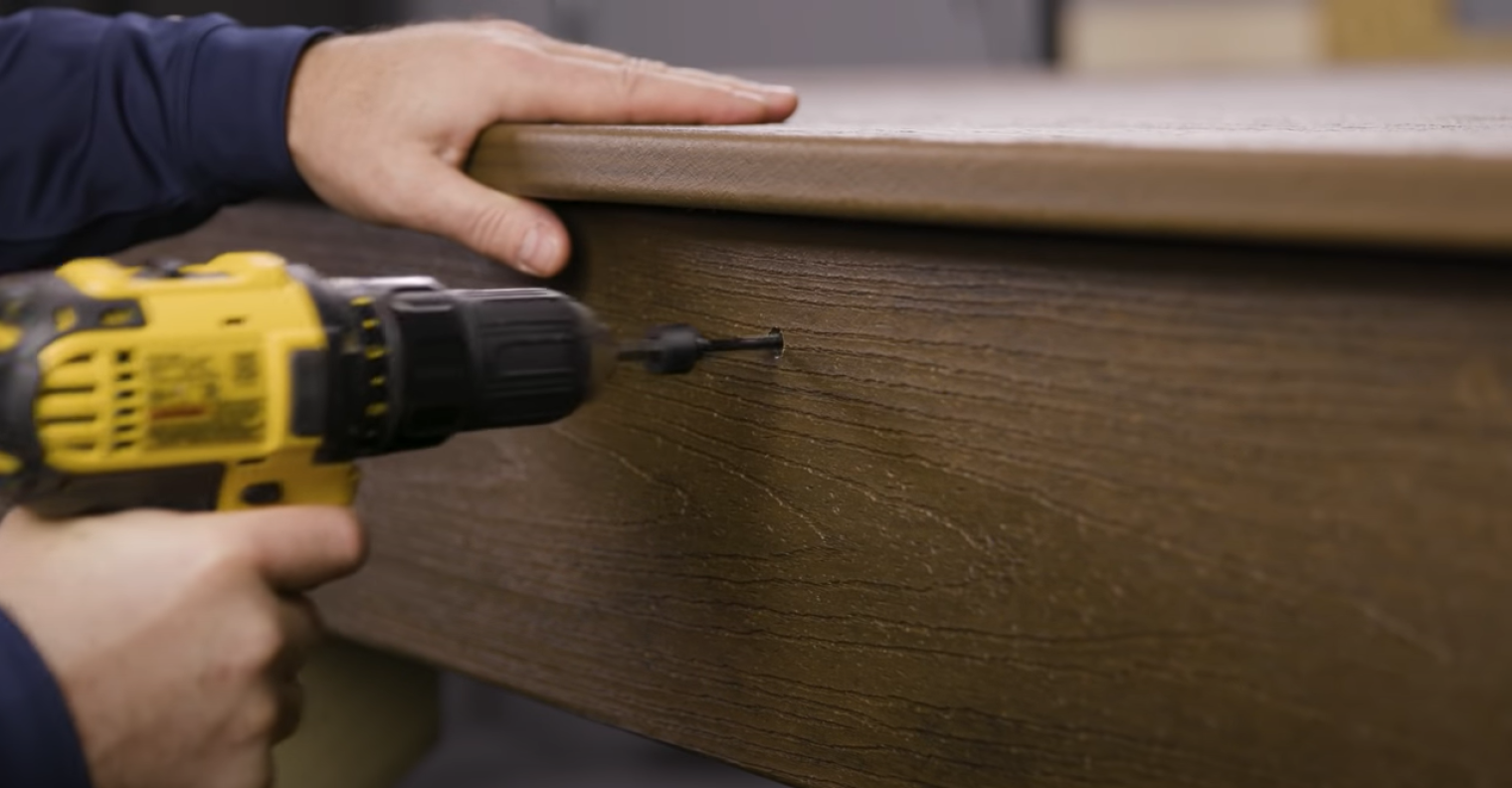

With fascia in place, drill the recommended fastening pattern using the Cortex Counterbore Tool.

Install screws into each prepared hole using the Cortex Fascia Setting Tool. Drive in one continuous motion until fastener is seated, keeping the fastener perpendicular to fascia for best finished look. Install Cortex Fascia Plugs over each screw head.

First, align the grain to match fascia and set into position by hand. Using a clean, smooth faced hammer, gently tap plug to flush. Remove the tacking screws, counterbore the resulting hole, fasten and install plugs to finish the job.

For more information, check out our Ask the FastenMaster Complete Hidden Fastening for Fascia video on our website.
