TimberLOK
Structural Wood Screw
TimberLOK delivers strong, code-compliant truss and rafter connections in seconds.
No Pre-Drilling Required
Installs in a fraction of the time versus traditional lag bolts with fewer steps and less effort. Its sharp point and aggressive threads zip right into the densest woods.
ACQ Approved & Code Compliant
Tested and supported by engineering data that conforms to the most current ICC standards. It is also approved for use in ACQ or treated lumber.

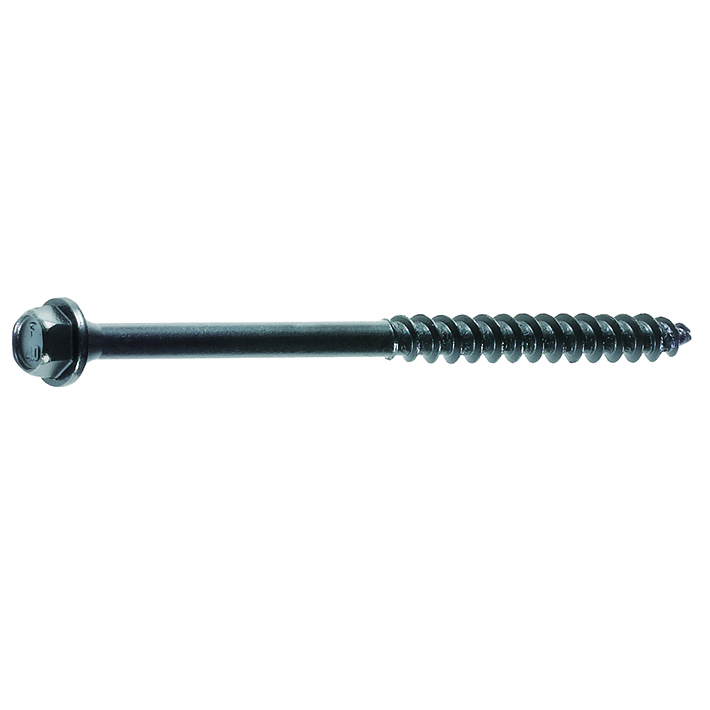

TimberLOK Structural Fastener

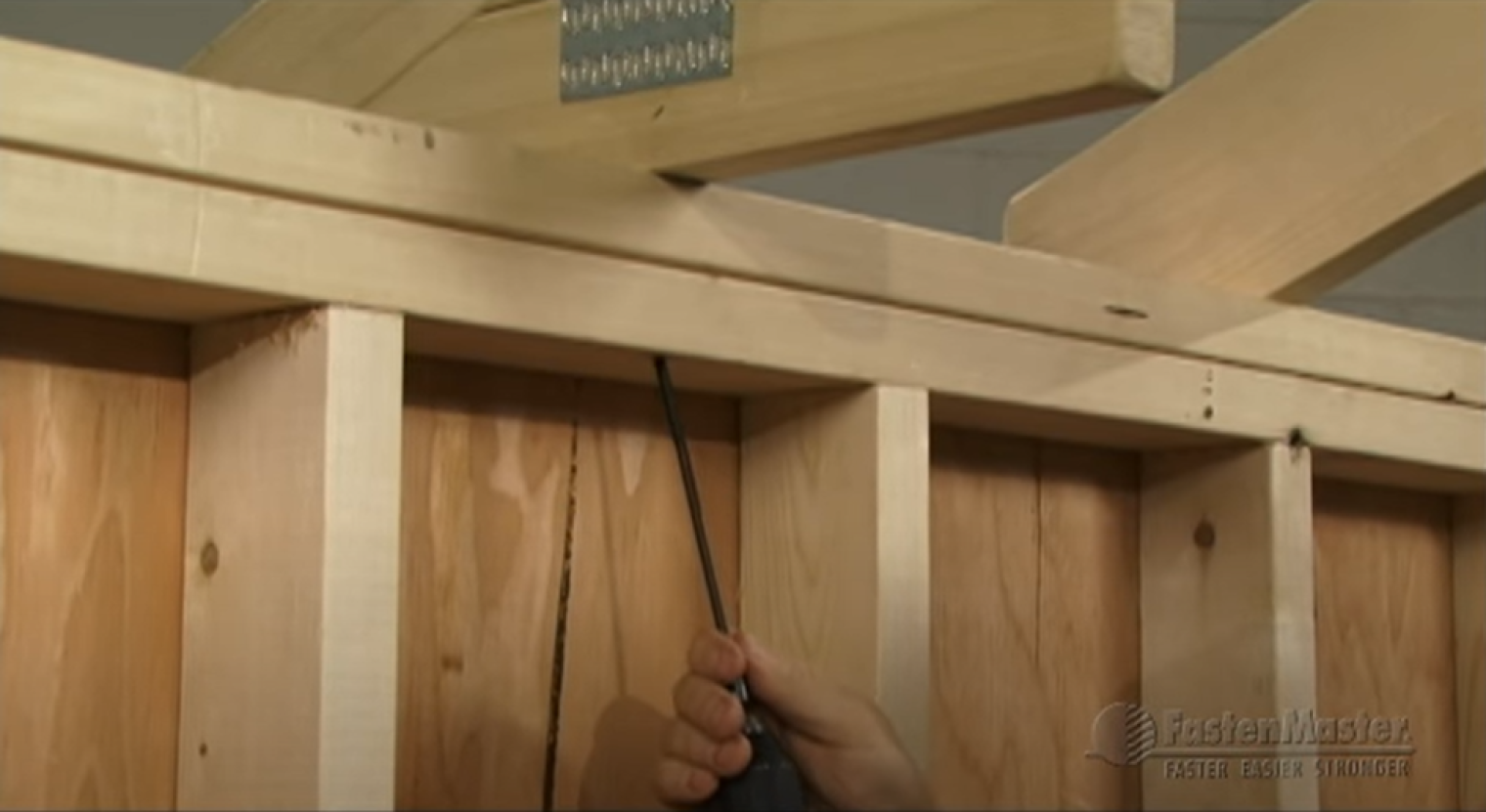

FastenMaster TimberLOK Rafter/Truss to Top Plate Installation Guide
FastenMaster TimberLOK vs. Hurricane Ties
Technical Bulletins / Installation Guides
-
TimberLOK Technical Bulletin
-
TimberLOK Technical Bulletin (Canadian)
Product Detail Drawings
-
TimberLOK Fastener Technical Drawing (DWG)
Evaluation Reports
-
TimberLOK Technical Evaluation Report - 1105-02
-
ICC-ES Evaluation Report (ESR-1078)
-
TimberLOK Technical Evaluation Report - 1306-01
-
TimberLOK Technical Evaluation Report - 1304-02
-
TimberLOK Technical Evaluation Report - 1308-05
-
TimberLOK Technical Evaluation Report - 1306-05
Product Brochures
-
TimberLOK Sell Sheet
Structural Detail Drawings
-
TimberLOK - Truss or Rafter to Plate - Detail TL01 (PDF)
-
TimberLOK - Truss or Rafter to Plate -Detail TL01 (DWG)
Part Numbers
| LENGTH | TYPICAL APPLICATIONS | PACKAGING QTY | SKU |
| 2 1/2" | Doubling/sistering up 2x header or carrying beams | Single Fastener | FMTLOK212-INDY |
| 12 pc clamshell | FMTLOK212-12 | ||
| 50 pc box | FMTLOK212-50 | ||
| 500 pc bucket | FMTLOK212-500 | ||

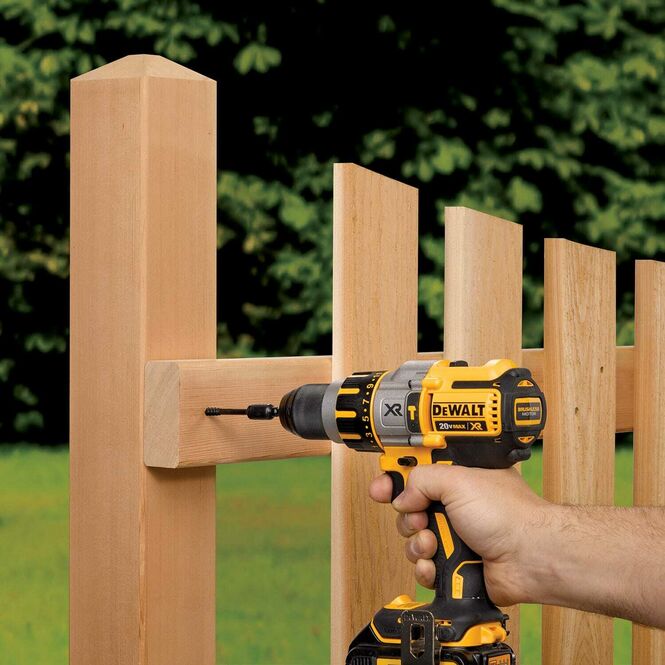

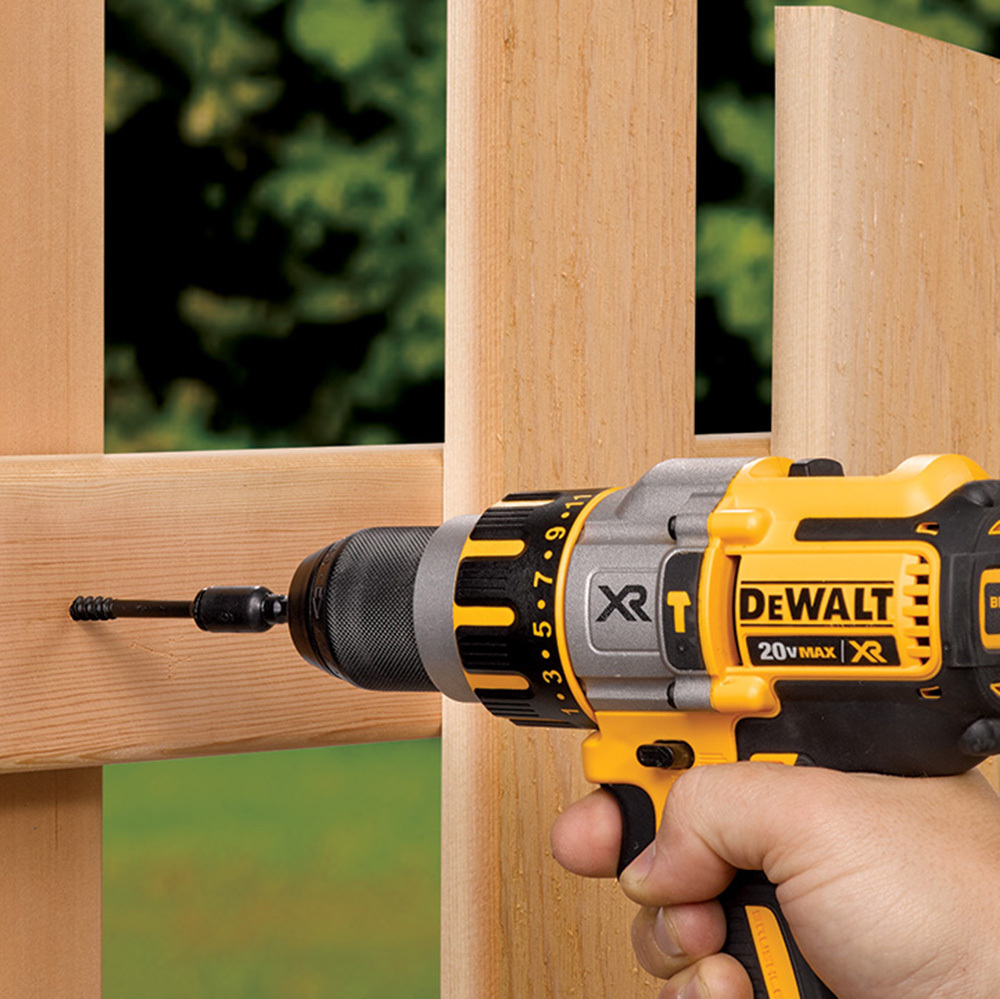

| 4" | Attaching 2x to 4x structures - fencing | Single Fastener | FMTLOK04-INDY |
| 12 pc clamshell | FMTLOK04-12 | ||
| 50 pc box | FMTLOK04-50 | ||
| 250 pc bucket | FMTLOK04-250 | ||
| 6" | Replacing hurricane ties on rafters or trusses. Joining multiple 4x timbers | Single Fastener | FMTLOK06-INDY |

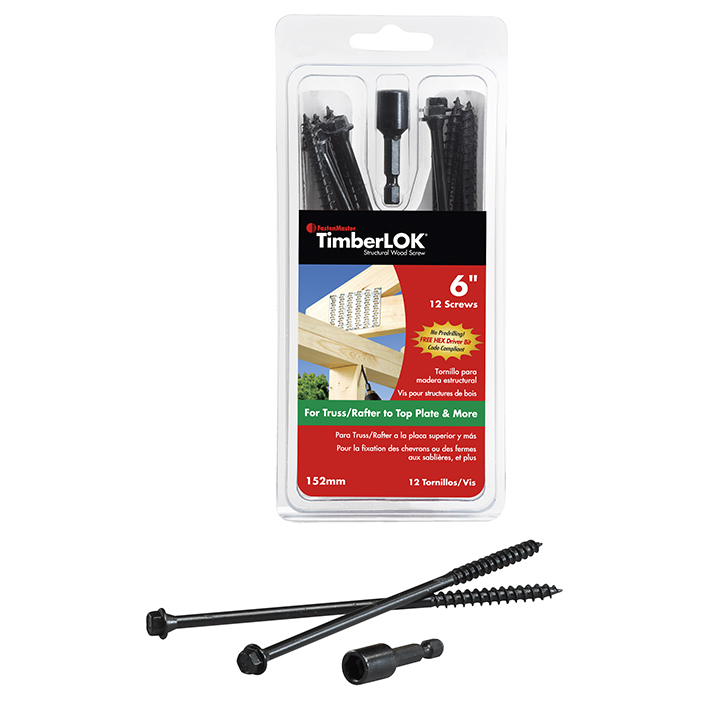

| 12 pc clamshell | FMTLOK06-12 | ||
| 50 pc box | FMTLOK06-50 | ||
| 250 pc bucket | FMTLOK06-250 | ||

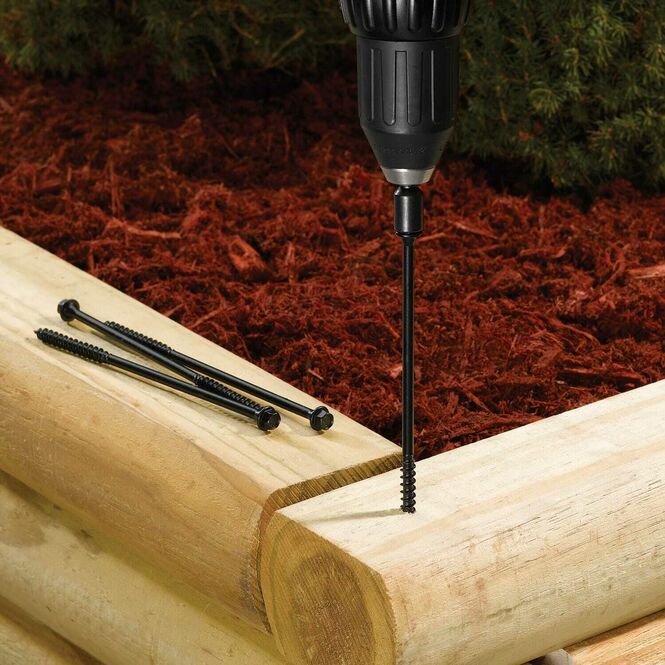

| 8" | Building up 6x landscape walls | Single Fastener | FMTLOK08-INDY |
| 12 pc clamshell | FMTLOK08-12 | ||
| 50 pc box | FMTLOK08-50 | ||
| 250 pc bucket | FMTLOK08-250 | ||
| 10" | Post and Beam construction | Single Fastener | FMTLOK10-INDY |
| 12 pc clamshell | FMTLOK10-12 | ||
| 50 pc box | FMTLOK10-50 | ||
| 250 pc box | FMTLOK10-250 |
